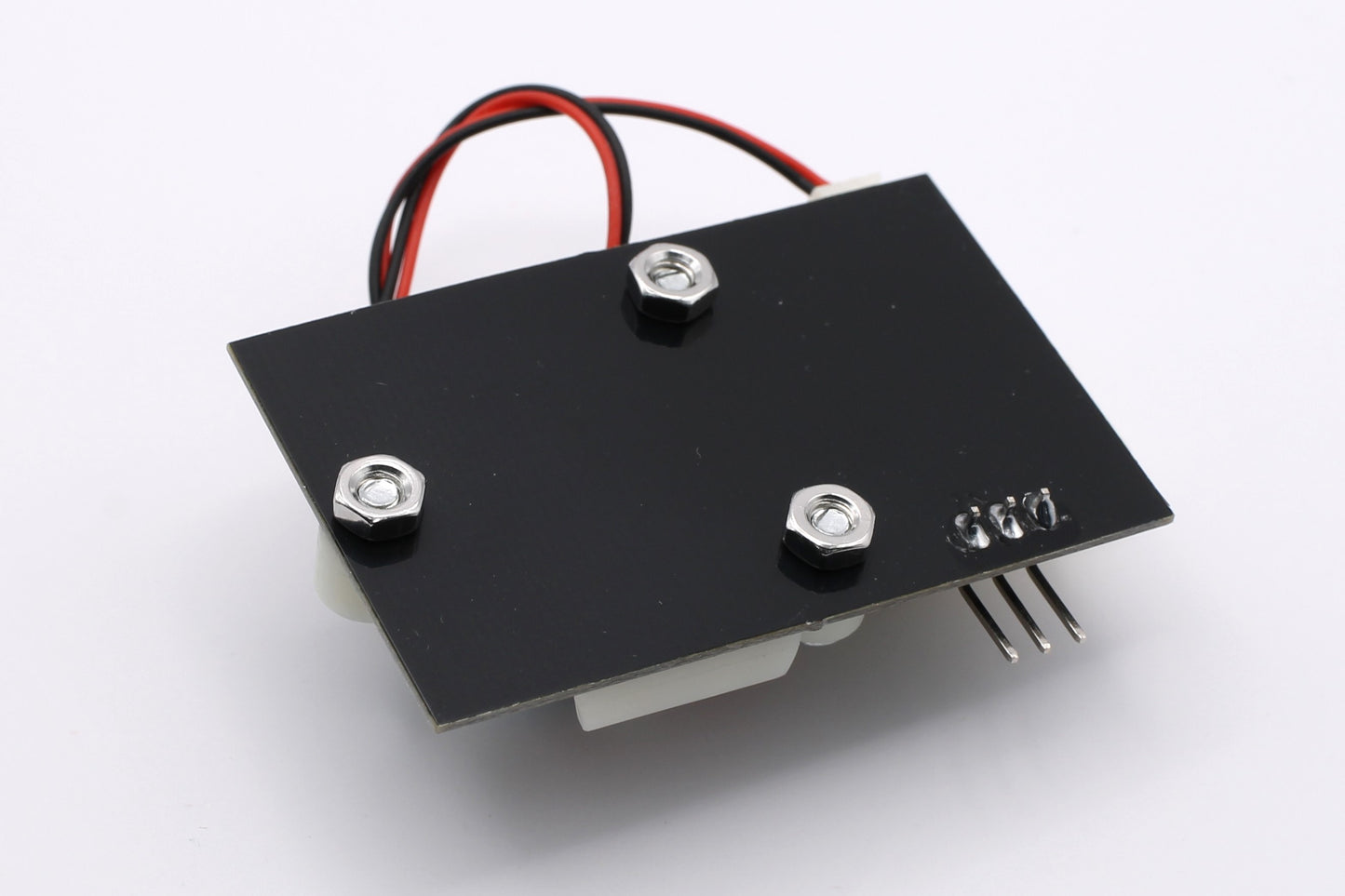

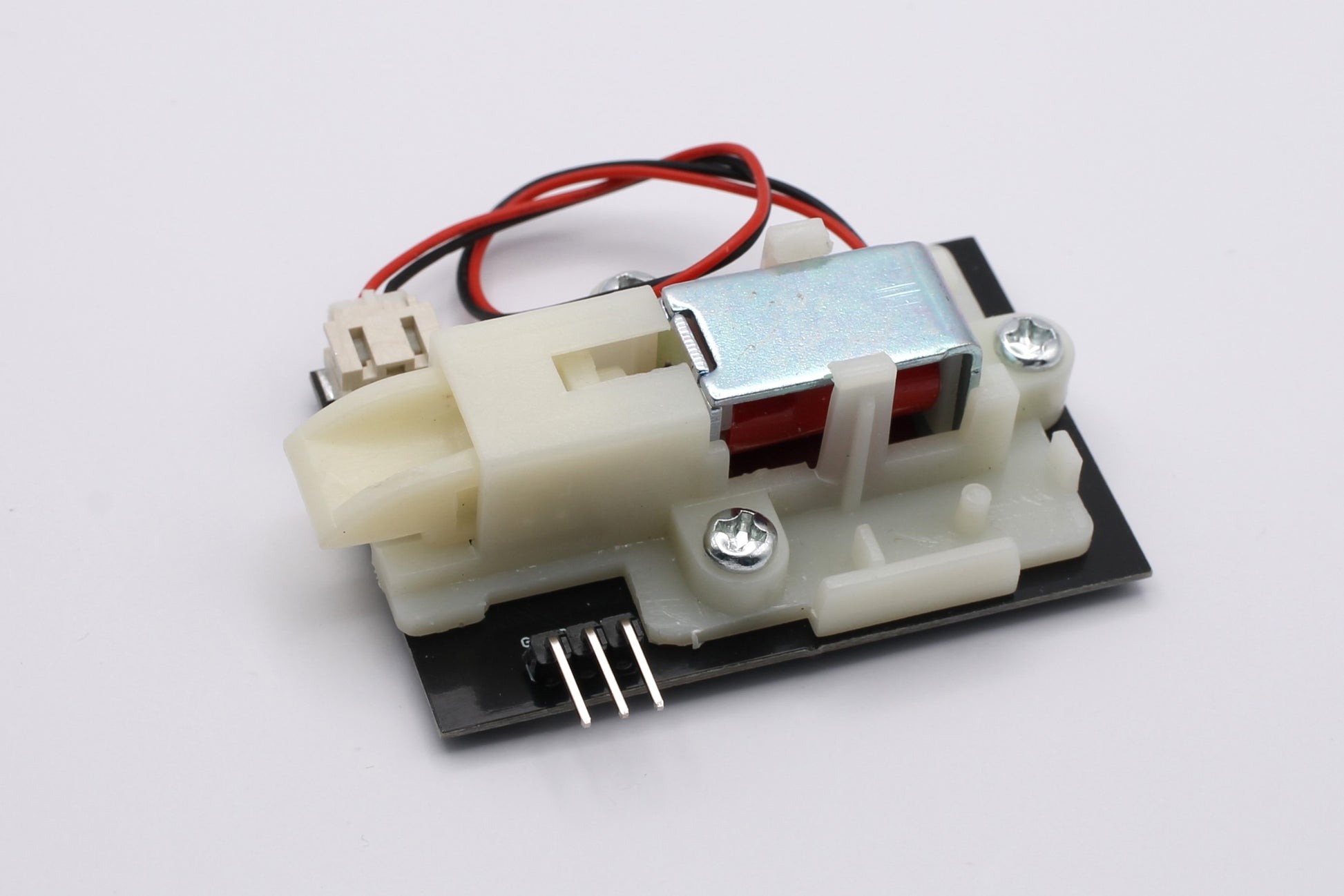

Solenoid Door / Cabinet Lock Assembly Breakout

What is it?

Introducing the Solenoid Door/Cabinet Lock Assembly Breakout Board - an affordable solution for getting your hands on some physical security. This user-friendly breakout board simplifies your setup, needing just three connections:

• VIN (3.3V to 5V)
• RLS (active-high lock release)
• GND

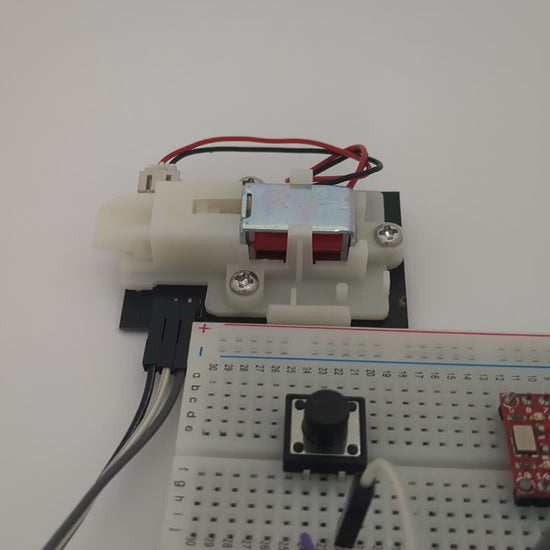

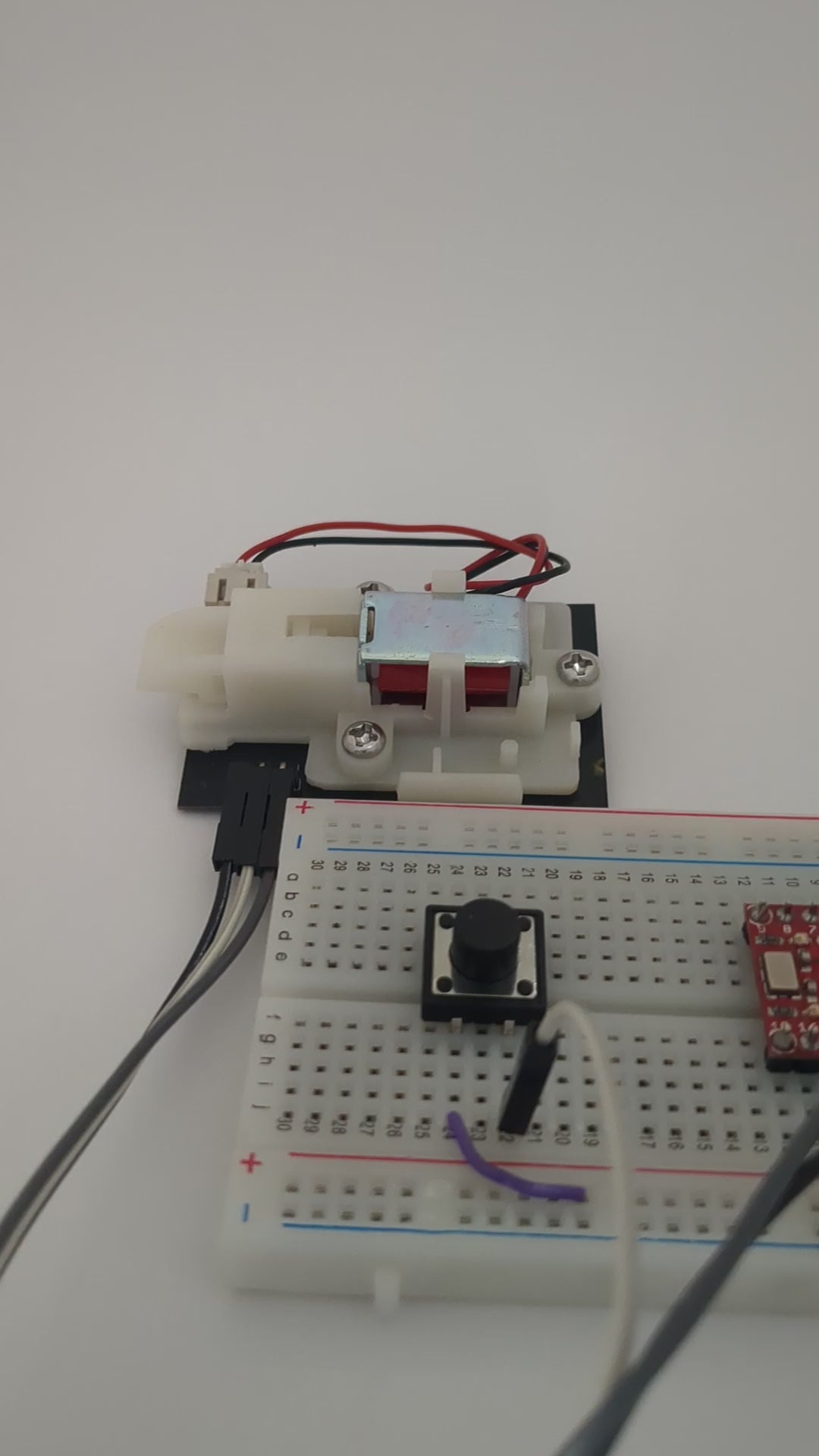

Out of the box, the lock latch is securely in the "locked" position. By applying a HIGH signal to the RLS pin, the latch will retract slightly, enabling the lock to open effortlessly. See demo video below. While the lock mechanism isn't constructed from metal, it is injection-molded from durable ABS plastic, making it versatile and suitable for a wide range of applications.

Potential Use Cases

Secure Cabinets and Drawers:

• Keep medicines, cleaning supplies, or hazardous materials safely locked away from children or pets.
• Secure liquor cabinets to prevent underage access or unauthorized use.

Office Access Control:

• Enhance office security by implementing electronic access control systems for meeting rooms, storage areas, and restricted zones.

Retail Displays:

• Protect high-value merchandise in retail displays and provide sales associates with easy access for assisting customers.
• Create interactive retail experiences where customers can request access to products at the touch of a button.
