Precision 0.35° Mini Geared Stepper Motor + Board

What is it?

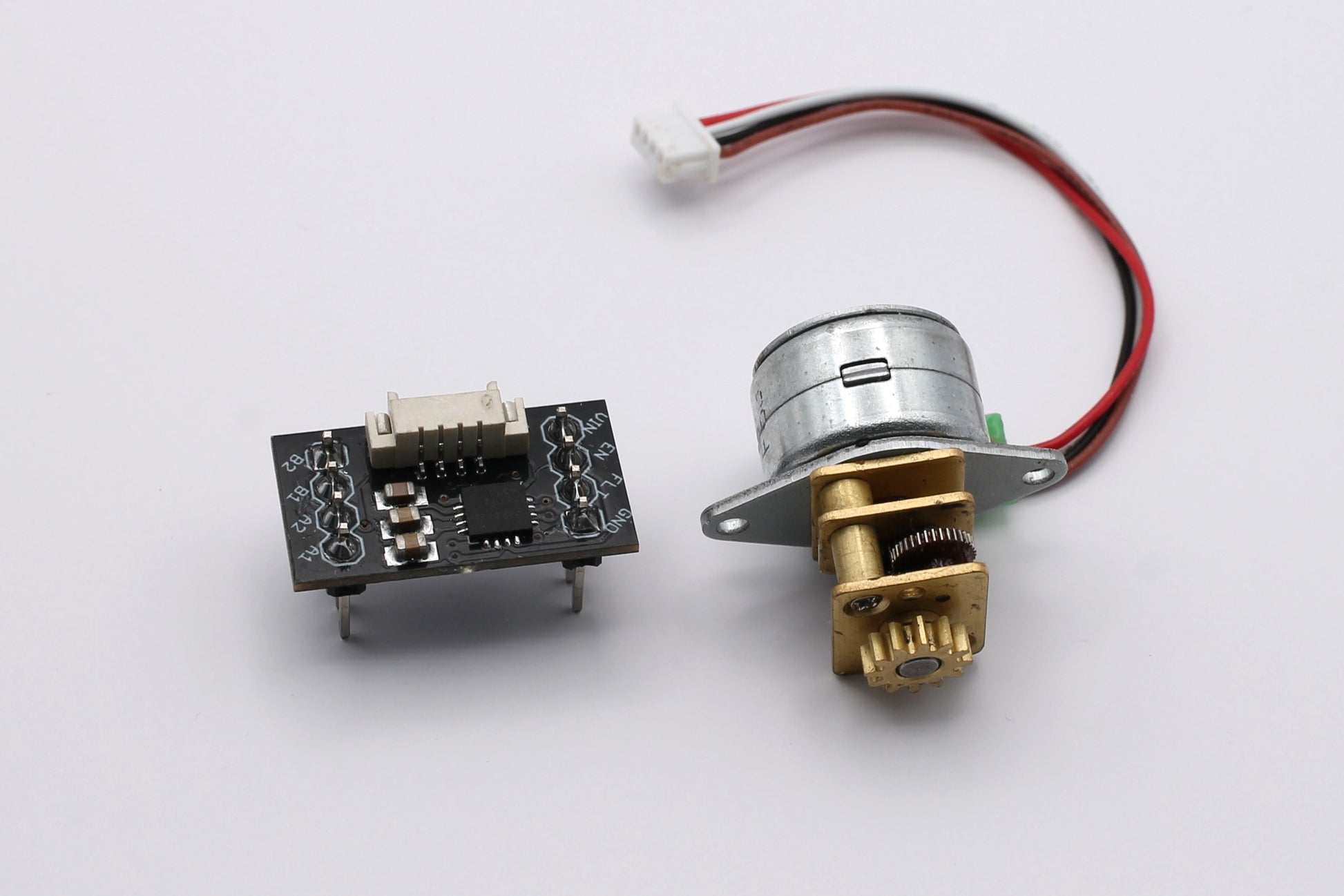

Introducing the Precision 0.35 Degrees Miniature Geared Stepper Motor, coupled with its dedicated DRV8833 Driver Board. This compact yet powerful device is designed for applications where precision and reliability are paramount. The integration of a 1-to-51.4 reducer gearbox significantly increases torque and enhances the accuracy of the stepper motor, allowing for an impressive 0.35-degree step precision.

Key Features:

High Precision Control: With a step accuracy of 0.35 degrees, this stepper motor allows for extremely precise movements, making it ideal for applications requiring fine control.

Compact Design: The miniature size of the motor makes it perfect for use in space-constrained environments.

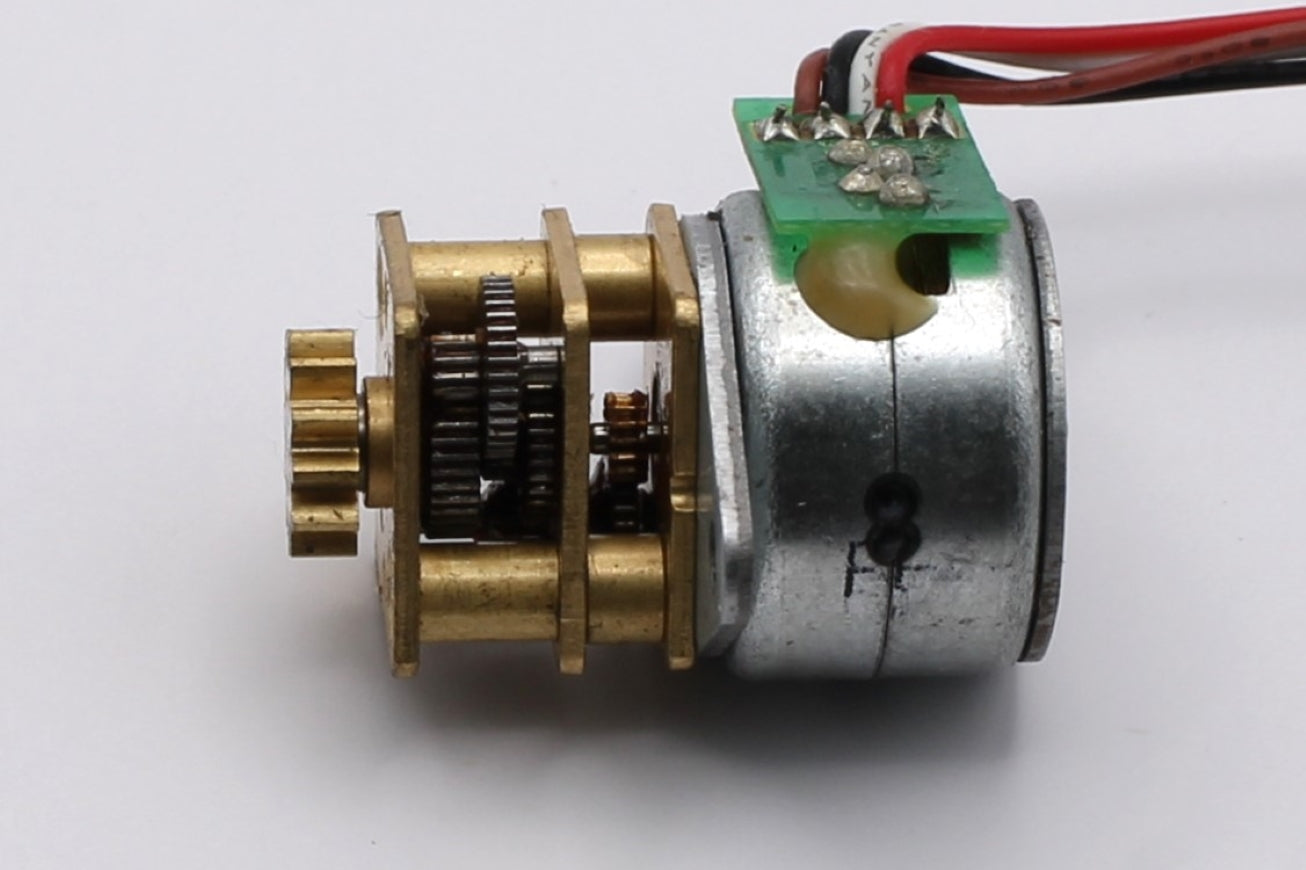

Reducer Gearbox: The attached gearbox reduces the speed while increasing the torque and precision, providing greater control and power.

Durable Construction: Built to last, the motor is constructed with high-quality materials, and the gearbox is all metal, ensuring long-term reliability and performance.

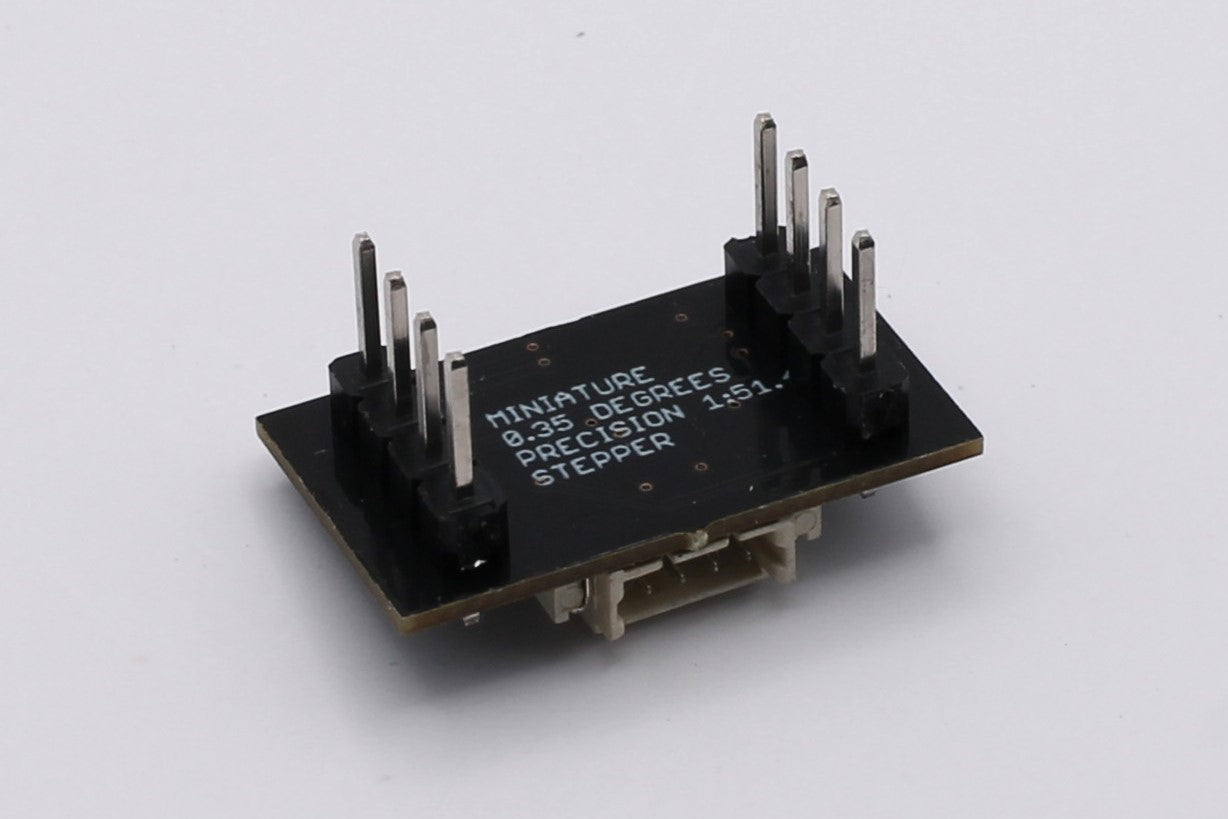

This breakout board has an onboard DRV8833 stepper driver IC, so you can use open source stepper motor libraries such as: Stepper

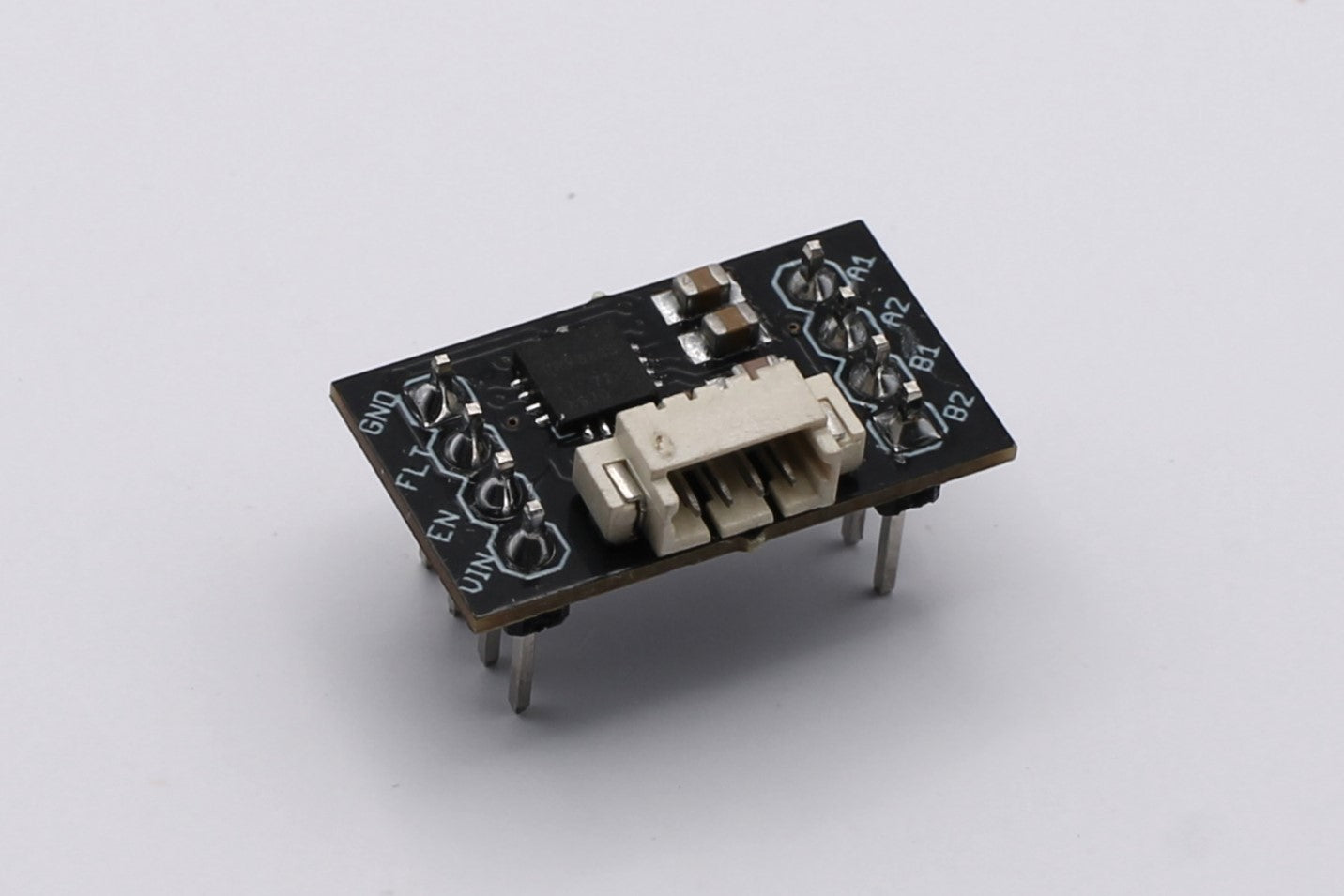

The breakout board pinouts are the following:

• GND (Ground)
• FLT (Stepper Fault output)
• EN (Enable)
• VIN (3.3V)
• A1 (stepper input)
• A2 (stepper input)
• B1 (stepper input)
• B2 (stepper input)

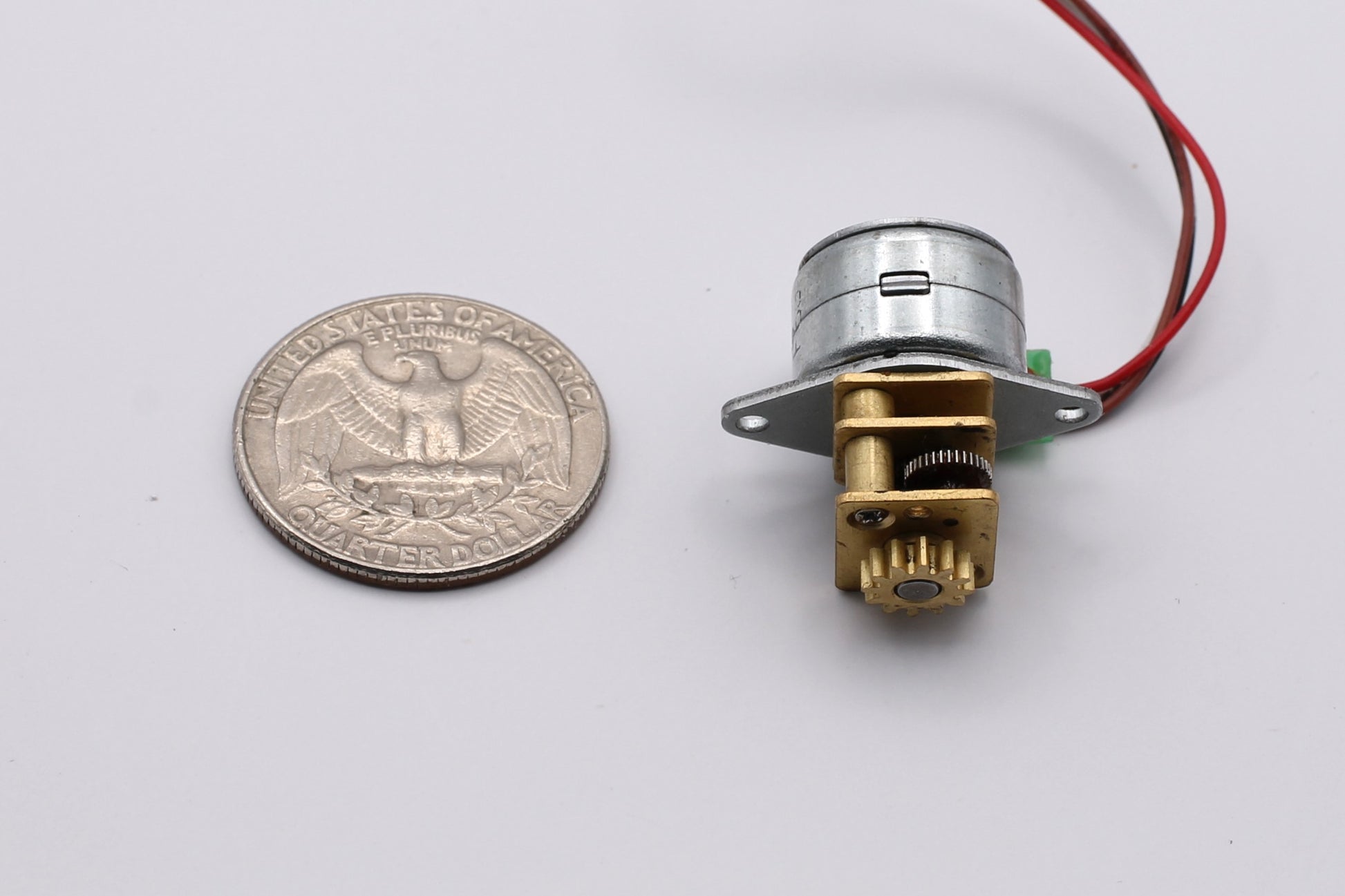

The miniature size of the stepper motor itself is ideal for those tight-space projects that require a compact solution. It's perfect for small toy projects and other micro applications. This miniature stepper motor and driver board combo is a versatile tool that can be used in a variety of ways, including for micro robots, miniature drones, art, mini robotic arms and grippers, miniature toy cars and trains, and more.

Some Exciting Use Cases:

Robotics: Ideal for small-scale robotics, this motor can be used in robotic arms, providing the precision needed for tasks like assembly, painting, or soldering in miniature or detailed workspaces.

Optical and Camera Equipment: Perfect for fine adjustments in camera focusing mechanisms or in optical equipment where minute adjustments are necessary.

Model Railways: The Precision 0.35 Degrees Miniature Geared Stepper Motor is an ideal component for enhancing the functionality and realism of toy model railway systems. In these setups, the motor can be used to control various aspects such as the train itself, track switching, speed and motion control, etc.
