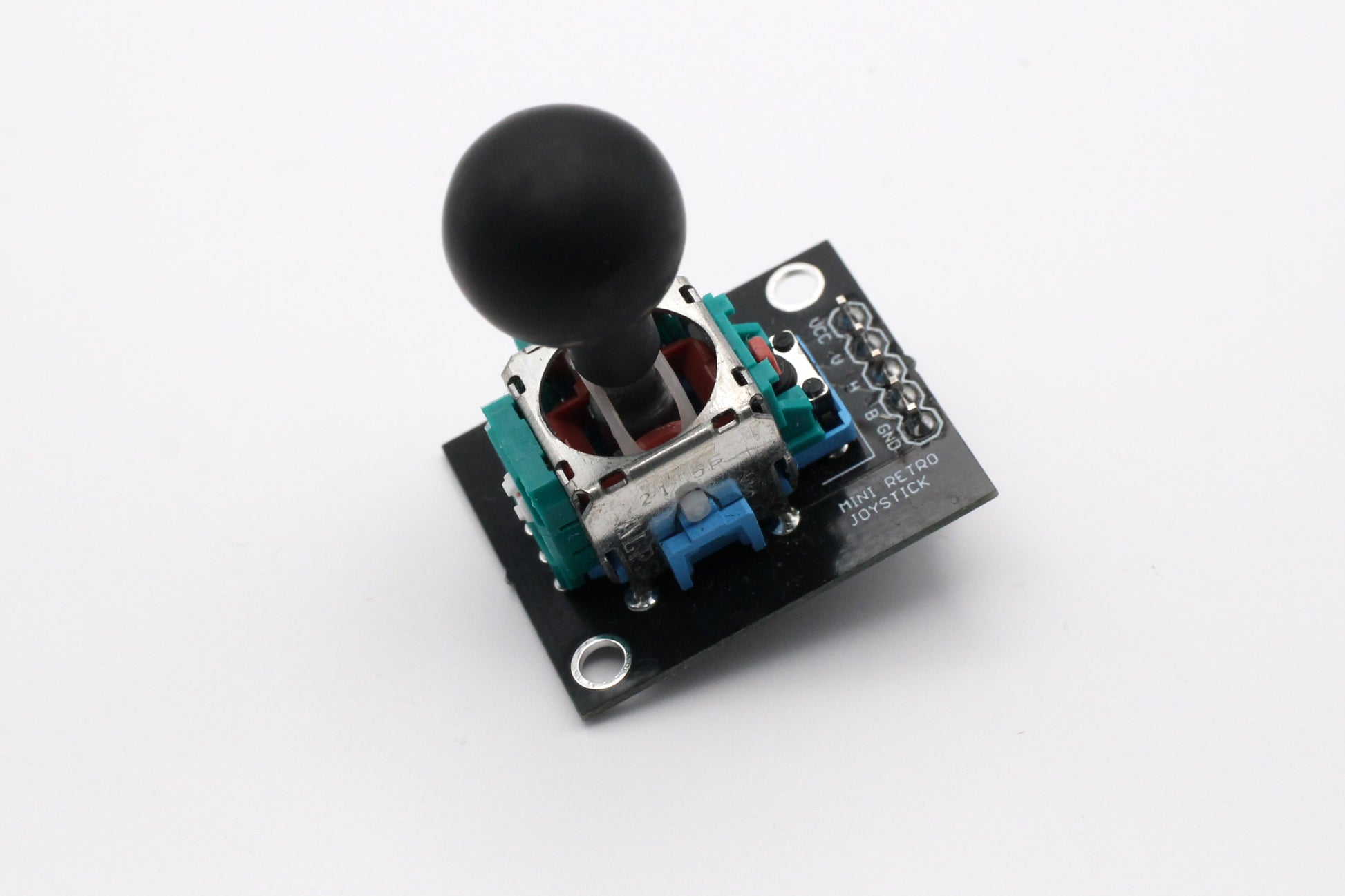

Mini Retro Analog Joystick w/ Push Breakout Board

What is it?

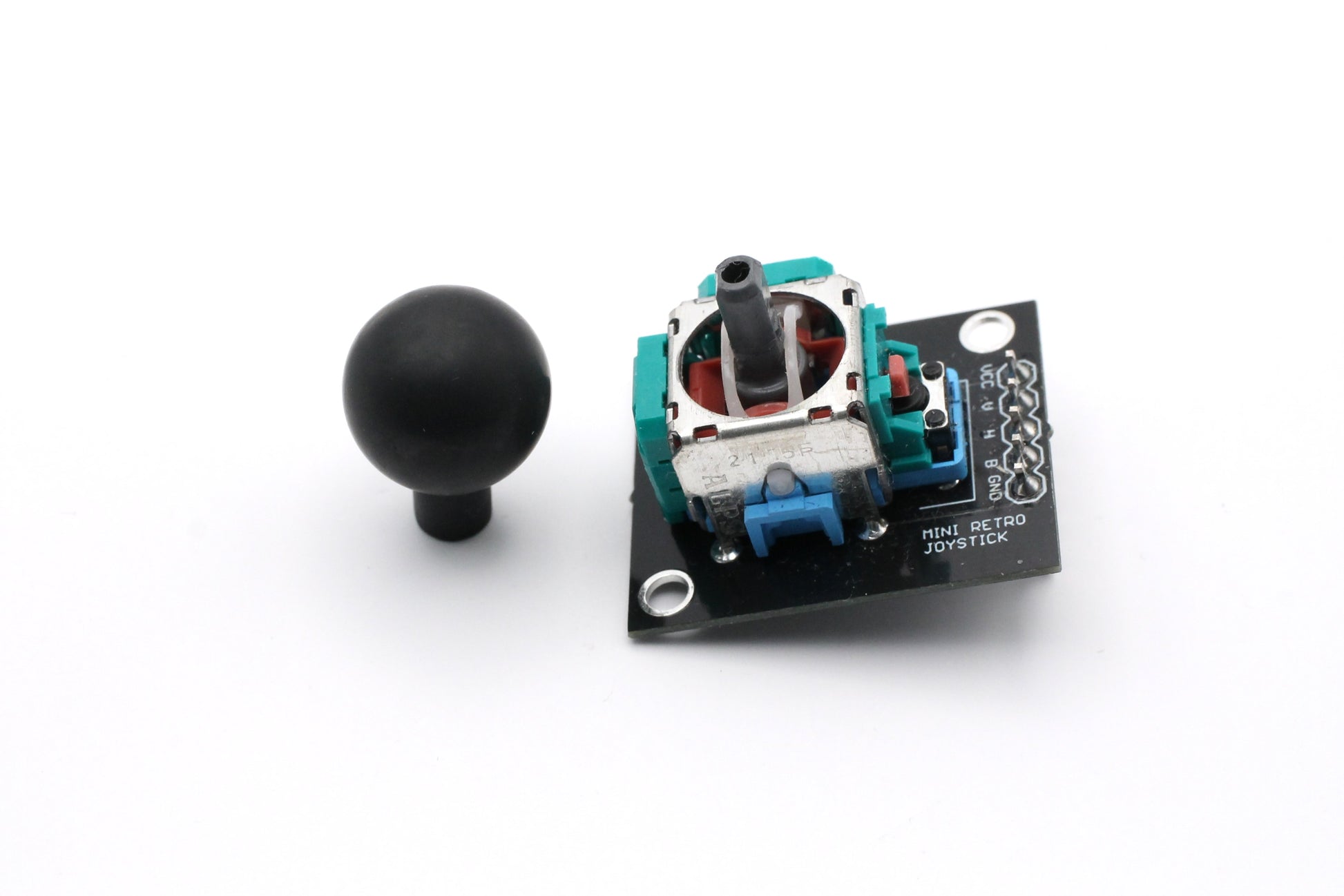

Introducing the Mini Retro Analog Joystick with Push Breakout Board – your ultimate compact and versatile solution for seamlessly integrating joystick controls into your projects. This innovative device boasts a unique 3D-printed resin joystick "ball" cap, lending it an authentic retro arcade aesthetic that enhances both its visual appeal and tactile experience.

Elevate your projects with the immersive feel of arcade-style controls, thanks to the meticulously crafted joystick "ball" cap that evokes memories of classic gaming experiences. Its compact size and versatile compatibility make it suitable for a wide range of applications, from gaming consoles to DIY robotics projects and beyond.

Dual Axis Control: Detects both vertical (up/down) and horizontal (left/right) movements, offering a comprehensive 2D control experience.

Voltage Output: Provides proportional analog voltage outputs corresponding to the joystick's position. This allows for precise measurement and interpretation of the joystick's movement.

Push Button: If you push down on the joystick, it becomes a push button in which you can use for menu selection, etc.

Self-centering: Once you let go of the joystick, it will move back into the center position.

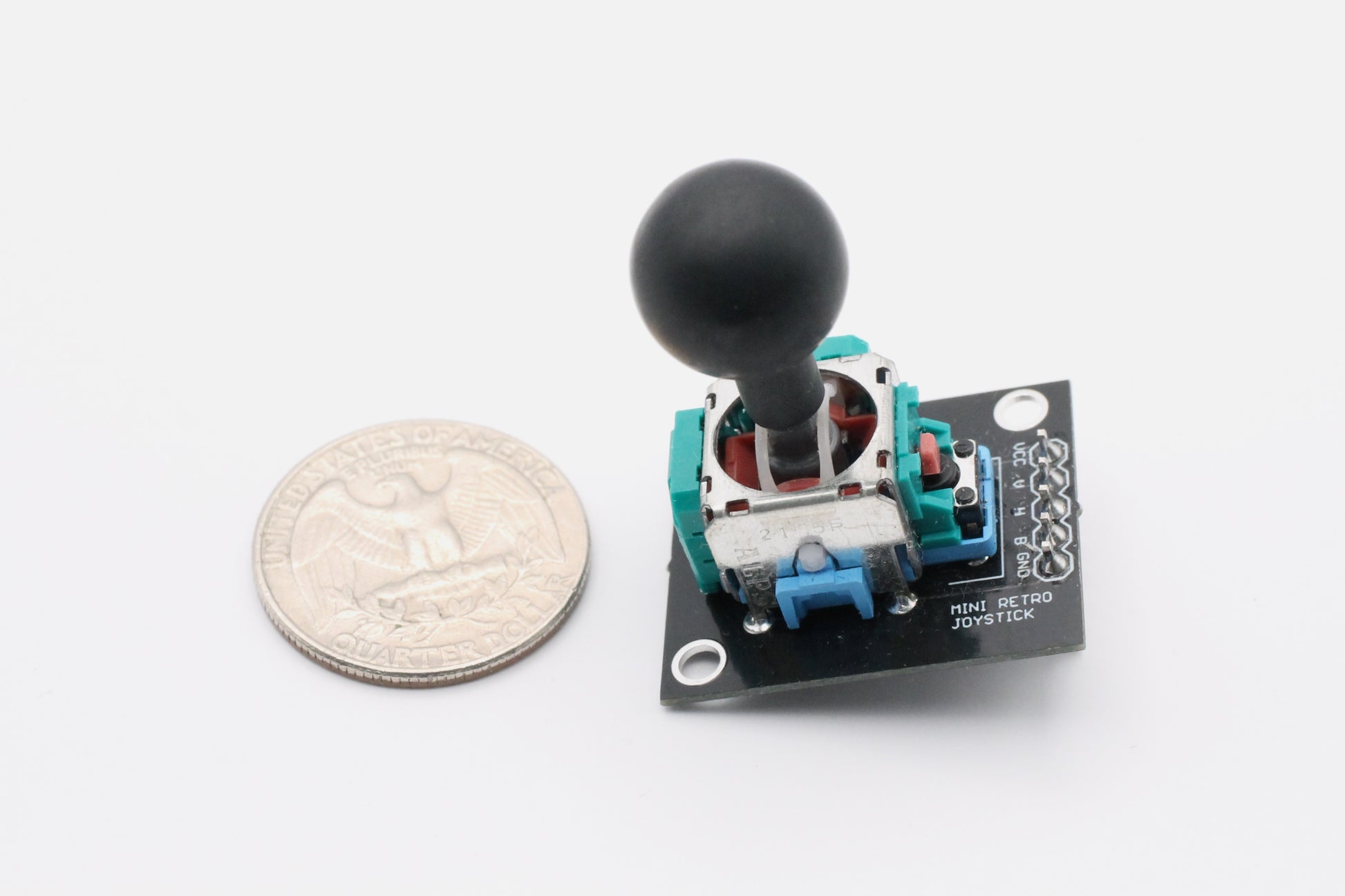

Compact Design: With its minimalistic footprint, it can be effortlessly integrated into space-constrained projects.

Easy Integration: Standard pin headers ensure compatibility with most microcontrollers and development boards, such as Arduino, Raspberry Pi, and more.

Wide Application Range: Ideal for robotics, gaming consoles, remote controls, and any project requiring directional input.

Pinouts:

• VCC: 3.3V - 5V
• V: Vertical Position
• H: Horizontal Position
• B: Push Button
• GND

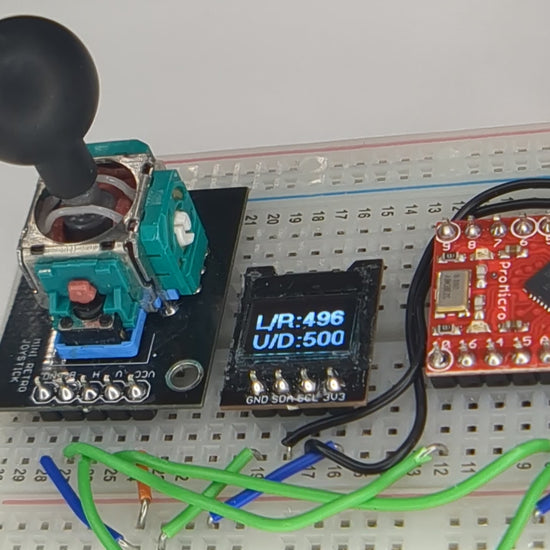

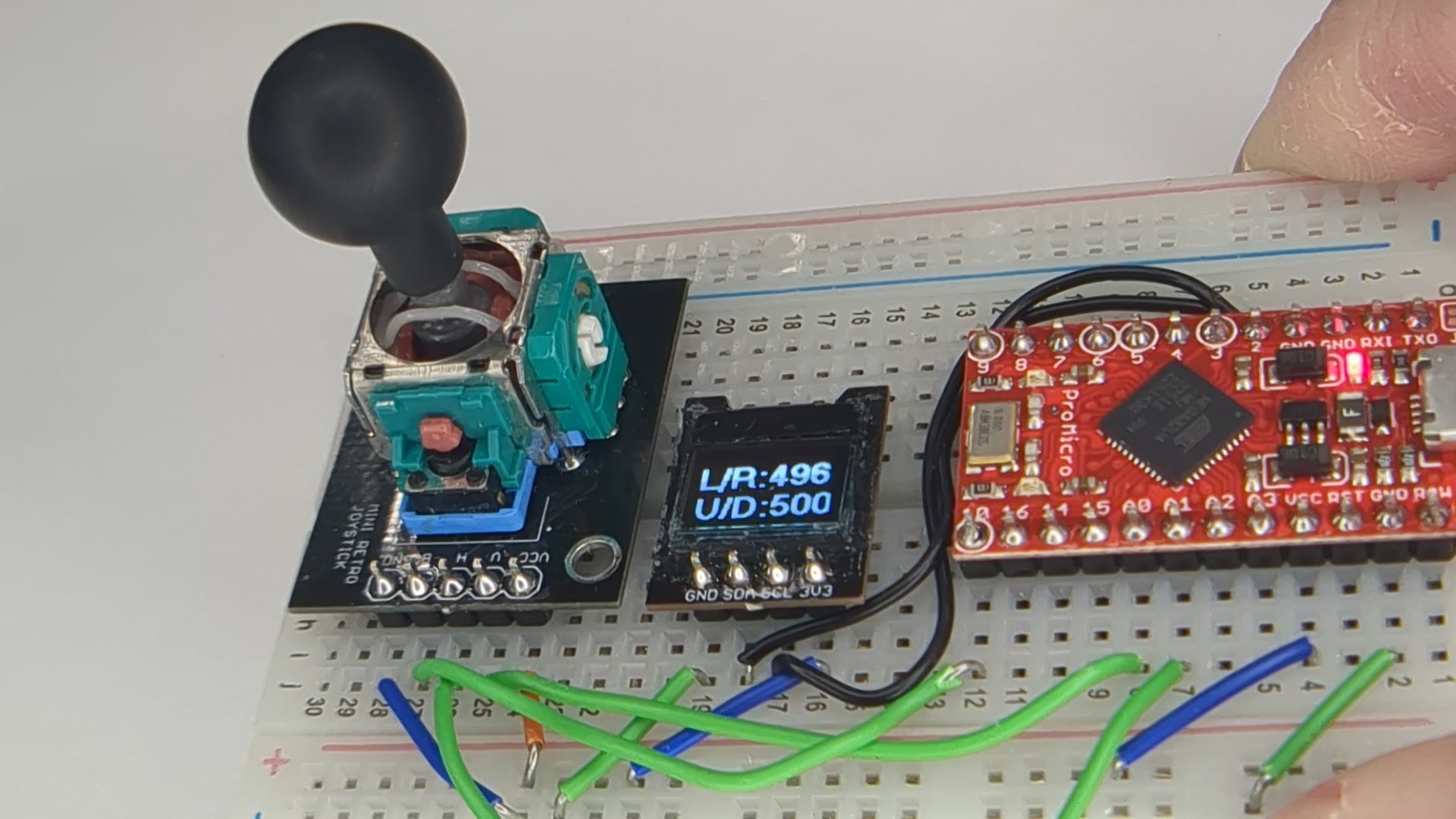

Simply power the breakout board using the VCC and GND pins, and connect the V and H pins to the analog input pins of your microcontroller. As the joystick is moved, the voltage on the V and H pins will change proportionally, allowing you to determine the joystick's position.

Whether you're building a custom game controller, a robotic arm, or any interactive project, the Mini Retro Analog Joystick w/ Push Breakout Board offers a straightforward way to add directional control as well as push capabilities. Dive into the world of intuitive control and endless possibilities with this breakout board!
