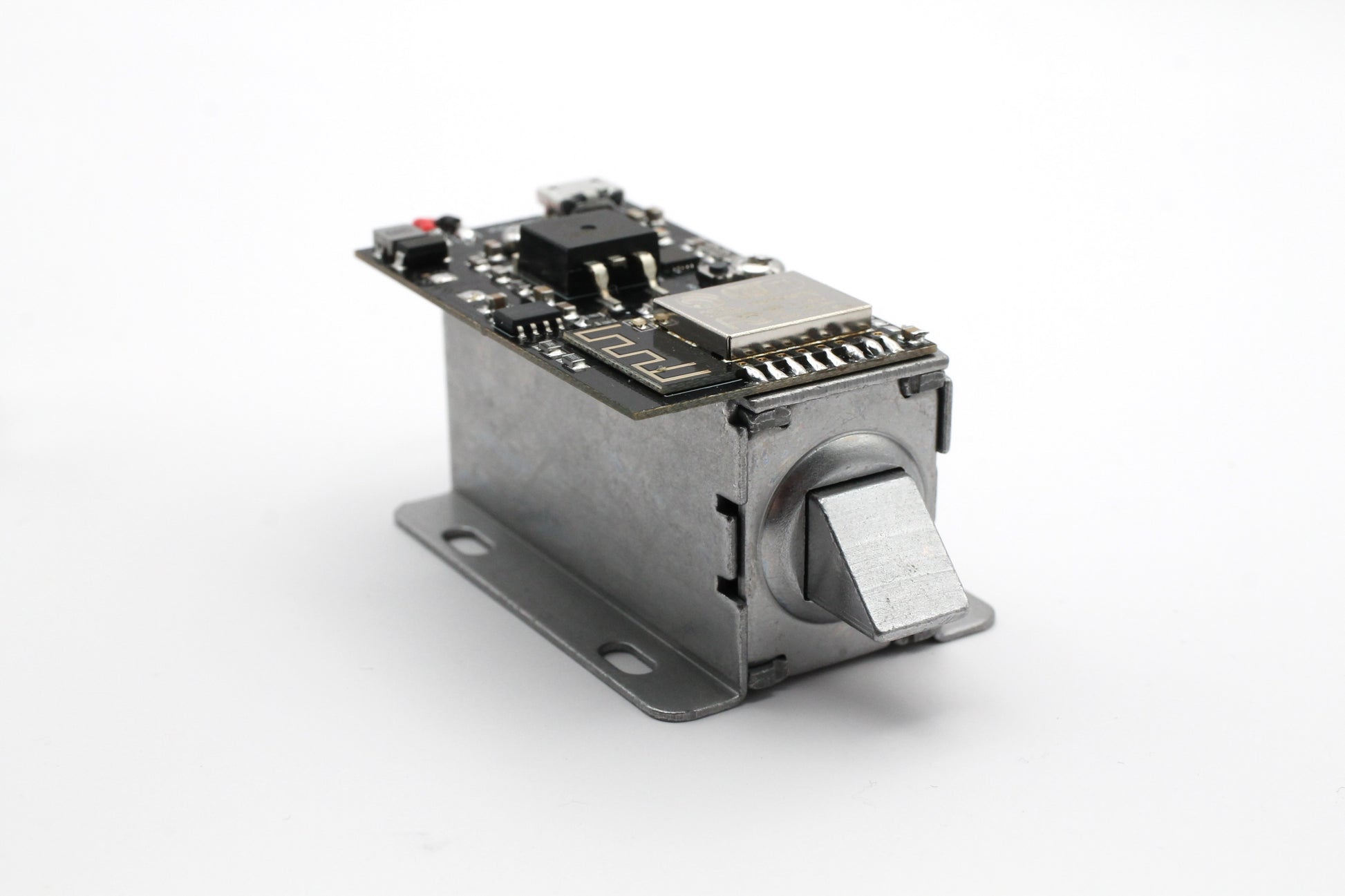

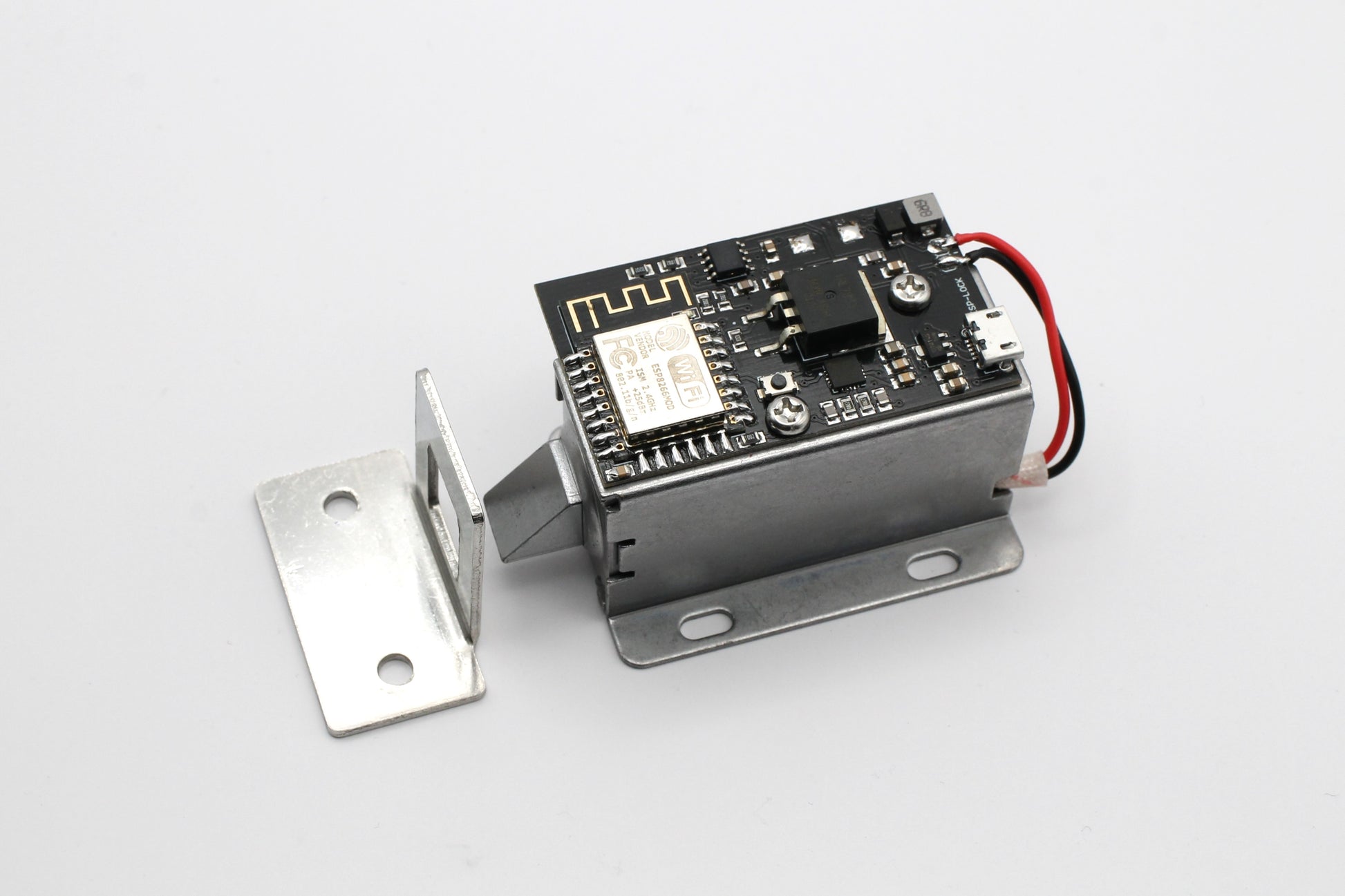

ESP-12F WiFi Remote Door / Cabinet Lock Dev Board

What is it?

Introducing the ESP-12F WiFi-Enabled Remote Door/Cabinet Lock Assembly and Development Board - Elevate Your Security with Wireless Control! This innovative breakout board features an integrated ESP-12F chip for seamless smartphone-controlled lock management.

This board features an integrated genuine FTDI IC for USB programming and Arduino IDE support through ESP8266 cores. Programming / Flashing mode can be set by holding onto the onboard "Flash" button during power-up.

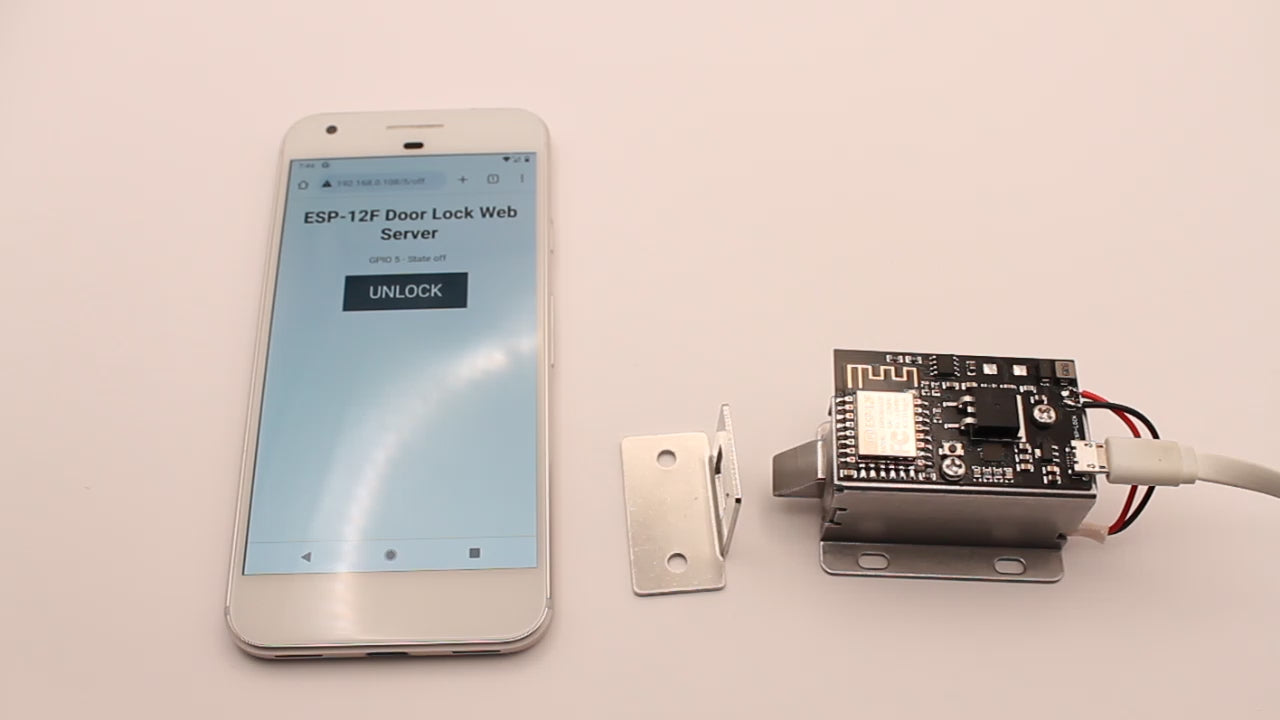

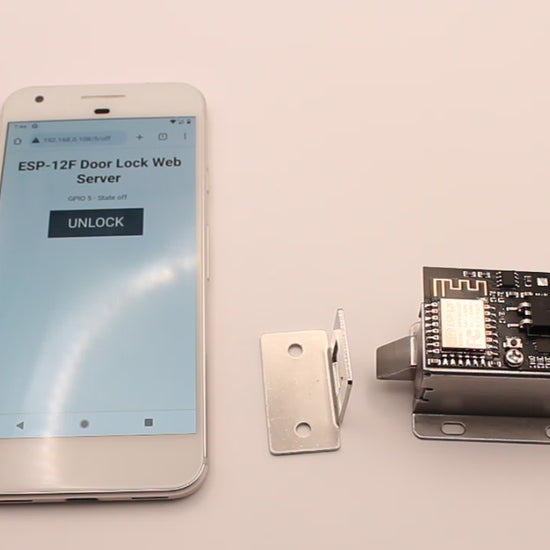

By toggling GPIO5 on the ESP-12F, you can effortlessly retract or extend the metal lock latch, securely locking and unlocking it. Watch the demo video for a demonstration. In the demo, a smartphone is linked to the ESP-12F's web server. Toggling the lock is as simple as pressing a button within the web interface. The lock can also be powered through the USB connection.

Additionally, this board incorporates a voltage step-up regulator, which boosts the 5V USB input to the necessary 12V required for operating the lock mechanism.

Potential Use Cases with Wireless Remote Connection:

Smart Home Security: Integrate your locks into your home automation system. Lock or unlock doors and cabinets remotely, and receive alerts when access is detected.

Airbnb or Rental Properties: Manage property access for guests without needing to be on-site. Provide temporary access codes that automatically expire after a guest's stay.

Remote Office Access: Ensure secure access to your office rooms and cabinets for employees or contractors. Grant or revoke access as needed, even when you're away.

Package Delivery Lockers: Create a smart package delivery system for your home or business. Allow delivery personnel to securely deposit packages in designated lockers, accessible only to you or authorized recipients.

Access for Caregivers: Provide caregivers or service providers with temporary access to specific areas of your home, such as medicine cabinets or storage rooms, without physical keys.

Retail Security: Enable remote access to high-value merchandise in retail displays, granting sales associates the ability to provide customers with access upon request.

Upgrade your security infrastructure with the WiFi-Enabled Solenoid Door/Cabinet Lock Assembly Breakout Board. Experience the convenience, control, and peace of mind that wireless remote connectivity brings to your security applications. Whether you're enhancing home security, managing rental properties, or optimizing your business operations, this innovative solution empowers you to do it all with ease and precision.
