Accelerometer-Based Gesture Control Module

What is it?

Introducing the Accelerometer-based gesture control module, a powerful device designed to bring intuitive gesture recognition capabilities to your projects. This compact module combines the ADXL345 accelerometer with an onboard microcontroller to accurately recognize and interpret a wide range of gestures, revolutionizing the way users interact with their creations. See demo video.

With advanced sensing capabilities, this module automatically handles gesture recognition for the accelerometer output, eliminating the need for tedious code writing. Simply connect the VCC and GND pins, as the module features an onboard 3.3V voltage regulator and operates on 3.3V logic.

The onboard microcontroller is specifically designed to analyze and interpret data from the accelerometer, allowing it to identify gestures with precision. However, it's important to note that this microcontroller is not user-programmable and is solely dedicated to processing the accelerometer output.

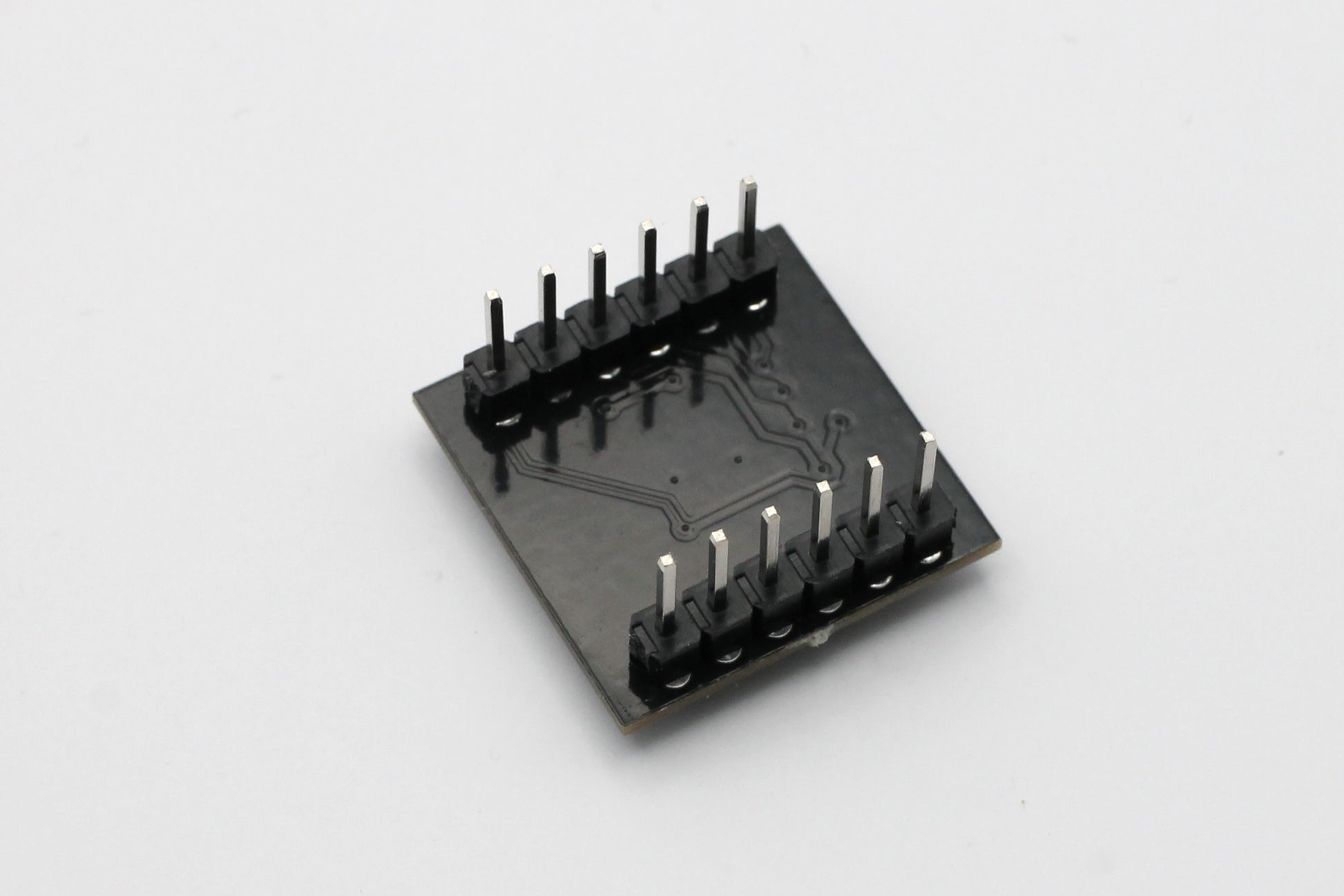

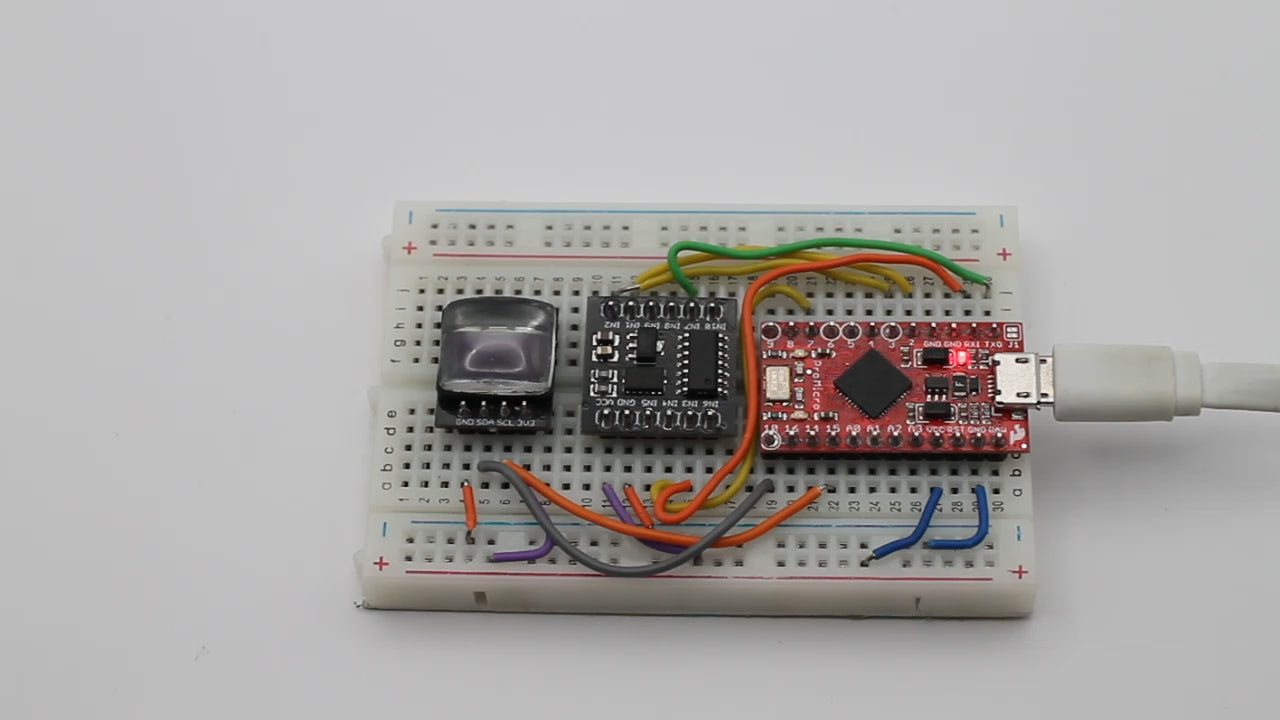

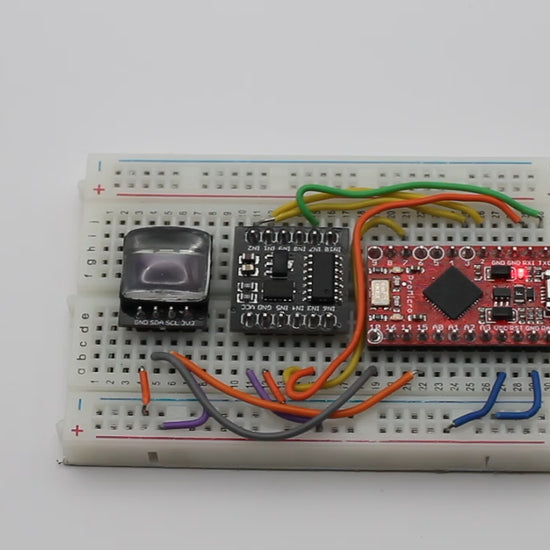

To fully utilize the gesture control module, it must be paired with an external microcontroller or Arduino. By connecting the module to an external controller, you gain the ability to customize actions and responses based on the recognized gestures. This integration enables you to create personalized projects that leverage the module's gesture recognition capabilities.

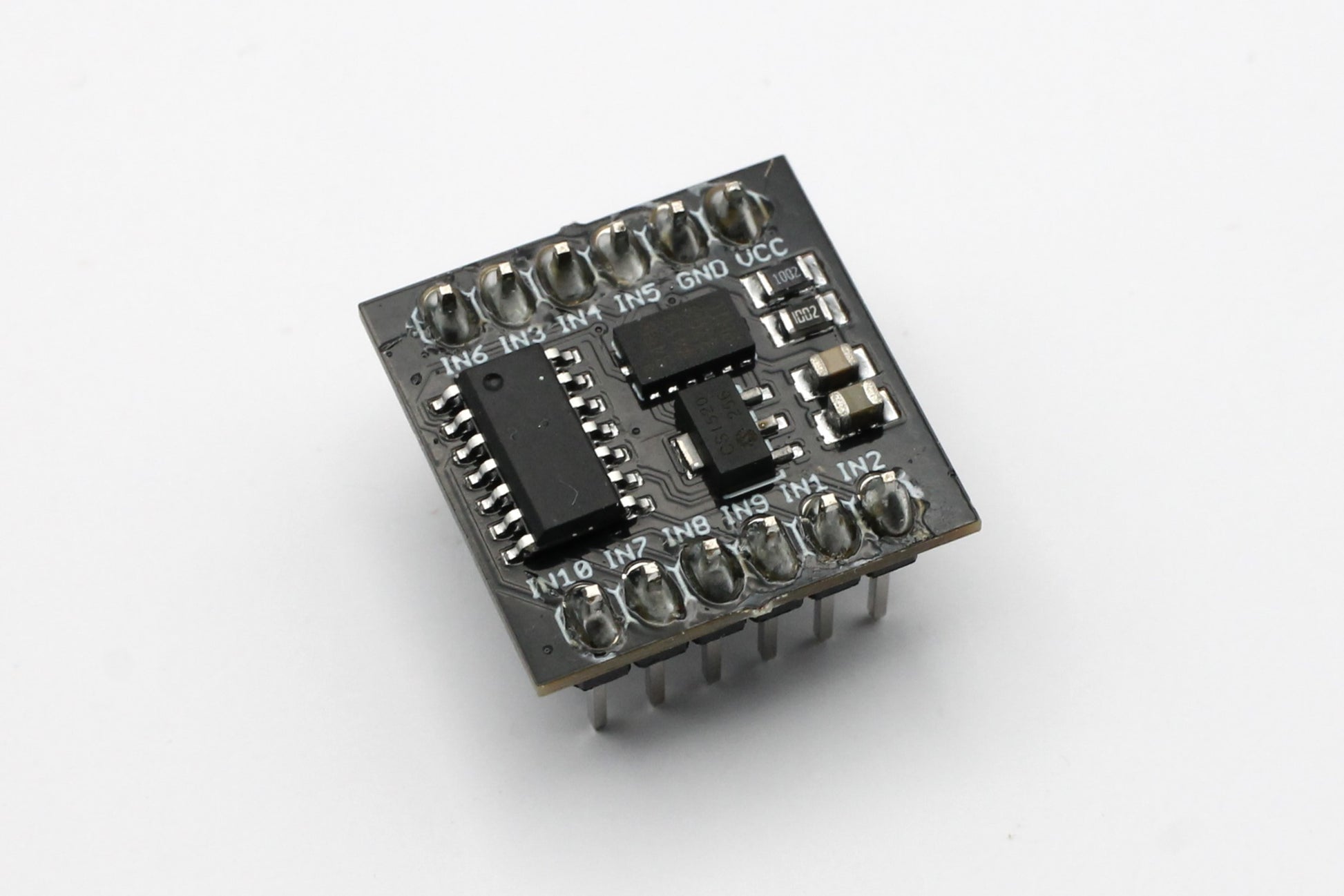

The gesture control module recognizes a variety of gestures, including forward, backward, left, right, activity, inactivity, tap, double tap, freefall, and shake. Each gesture corresponds to a specific interrupt pin (INT) that briefly pulls down when detected.

By configuring interrupts in your code, you can specify the actions to be triggered when the module detects particular gestures. This opens up a world of possibilities, allowing you to develop gesture-controlled robots, remote-controlled vehicles, and immersive gaming experiences.

The following gestures are recognized:

• Forward (INT 1)
• Backward (INT 2)
• Left (INT 3)
• Right (INT 4)
• Activity (INT 5)
• Inactivity (INT 6)
• Tap (INT 7)
• Double Tap (INT 8)
• Freefall (INT 9)
• Shake (INT 10)

By pairing this gesture control module with a microcontroller or Arduino, you can configure interrupts in your code to trigger specific actions when the module detects particular gestures. This functionality unlocks a world of potential, allowing for the development of gesture-controlled robots, remote-controlled vehicles, and captivating interactive gaming experiences.

For a brief tutorial on how to set up interrupts: https://circuitdigest.com/microcontroller-projects/arduino-interrupt-tutorial-with-examples

Some potential use cases for this Gesture Control Module:

Robotics: Create a gesture-controlled robot that moves in the direction specified by the user's gestures, providing an engaging and immersive experience.

Gaming: Develop a DIY motion-controlled gaming controller, enabling players to interact with games by performing gestures instead of pressing buttons.

Home Automation: Use gestures to control smart home devices such as turning lights on/off, adjusting thermostat settings, or activating security systems.

Wearable Technology: Design a wearable device that recognizes gestures for controlling music playback, answering calls, or navigating through applications.

Accessibility: Build assistive devices that allow individuals with limited mobility to interact with their surroundings by performing gestures.

Educational Projects: Introduce students to the world of electronics and programming by creating hands-on projects where gestures control various elements.
